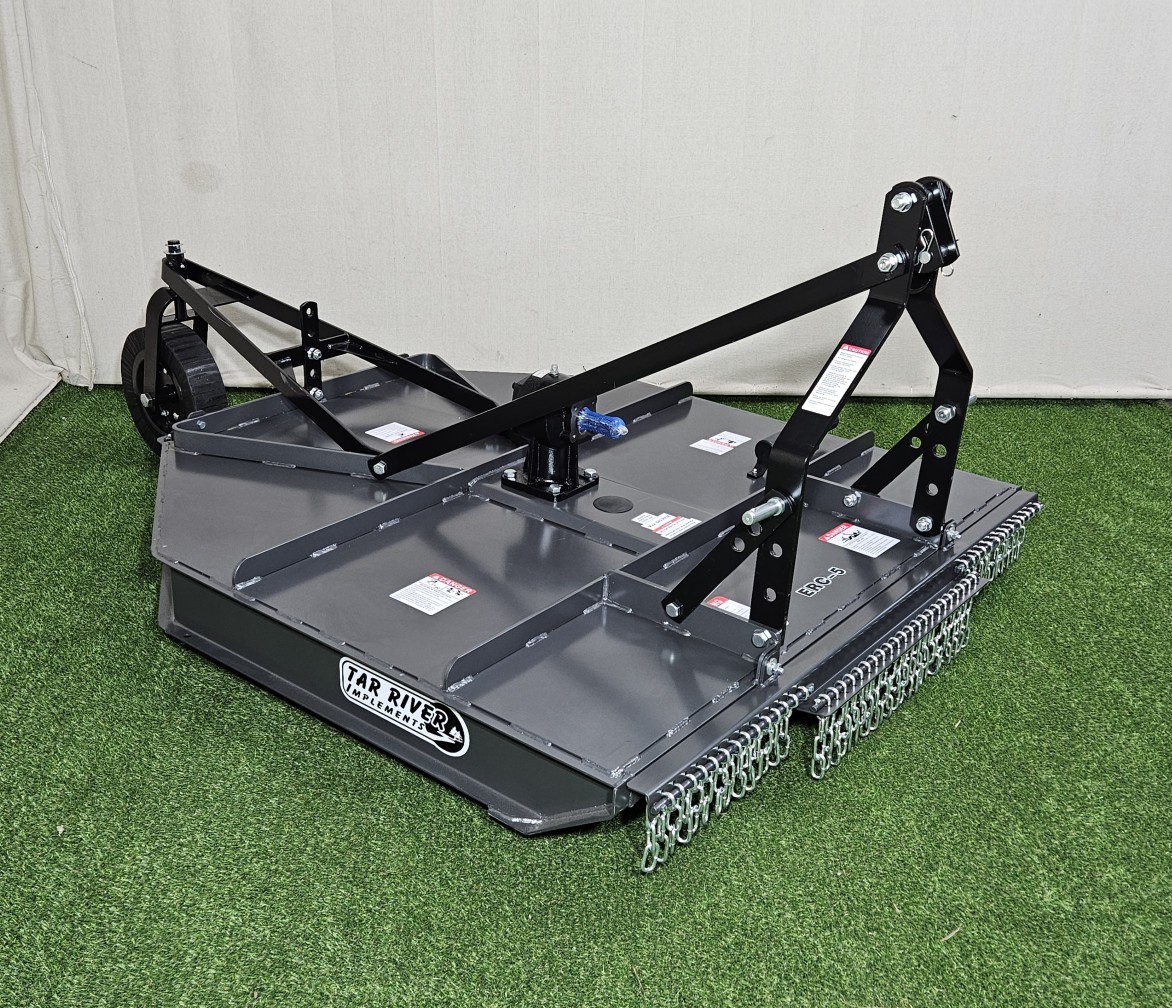

Tar River ERC Rotary Cutter

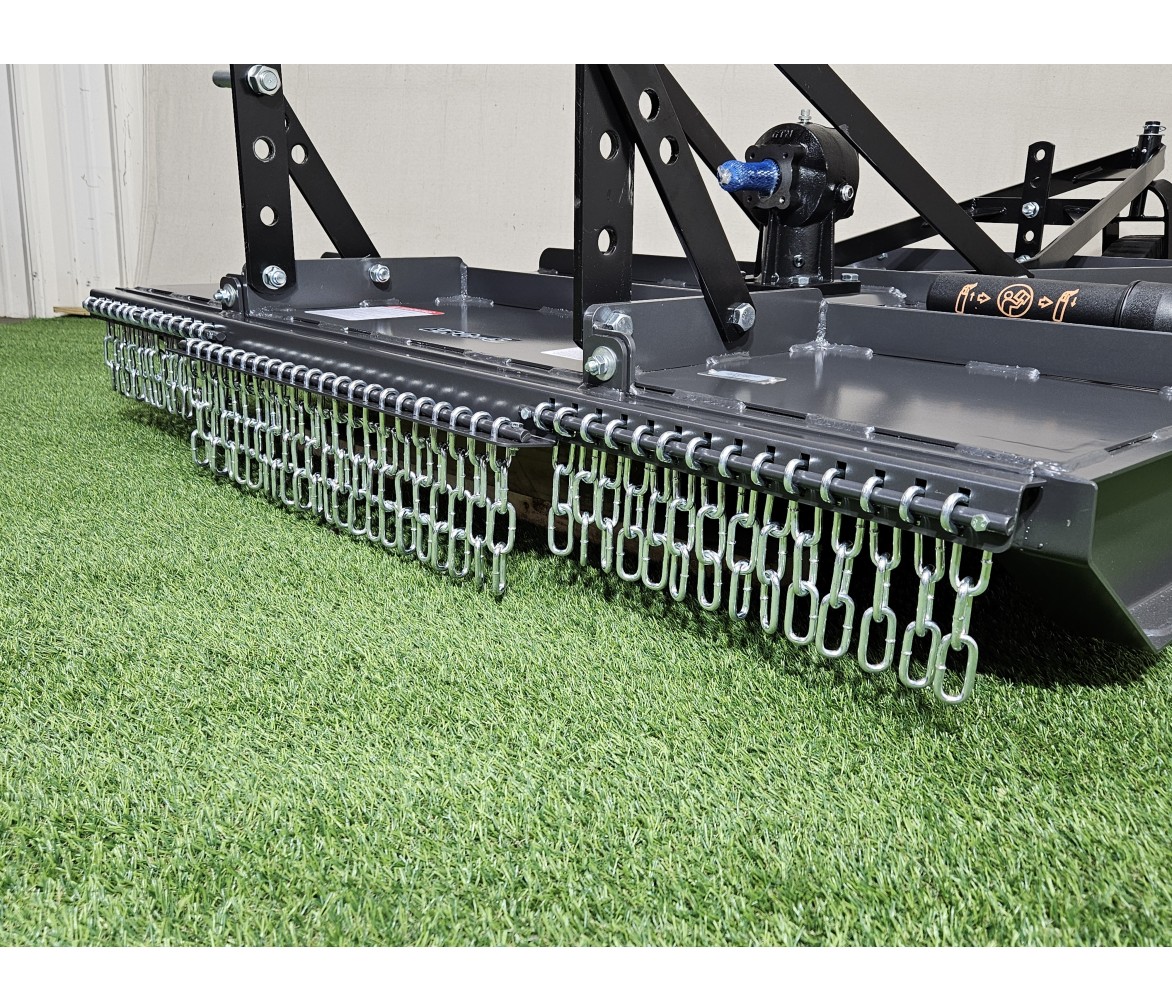

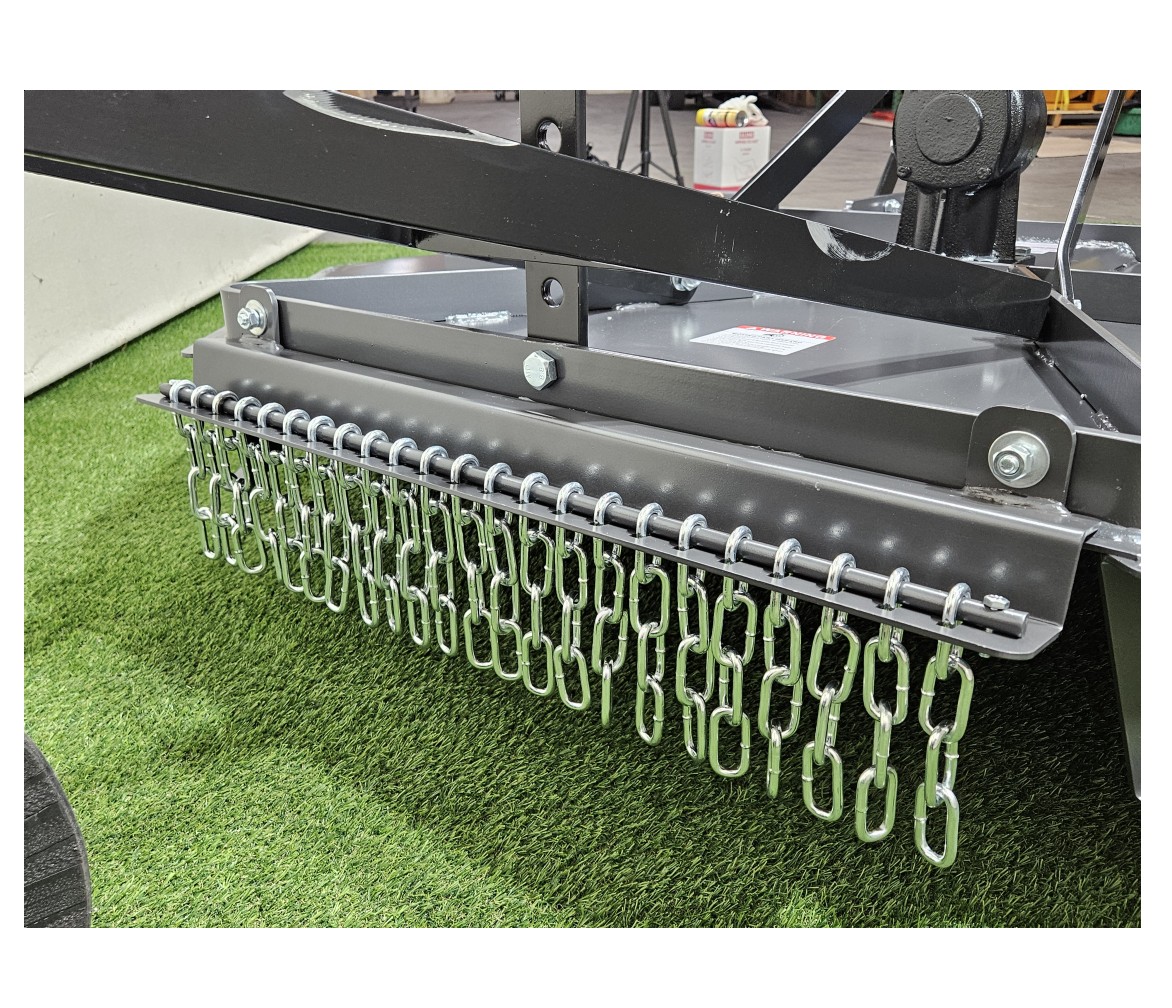

The new Tar River ERC rotary cutter comes in 4, 5 & 6 ft sizes. These cutters are well made and come standard with front + rear chain shielding.
4' cutters come with standard with shear pin protection, 5' and 6' are standard with slip clutch.
These cutters also come with a 3-year limited gear box warranty.
Key Features
Models Available
BR Equipment Benefits
BR Equipment proudly offers Tar River Implements, known for their durability, innovation, and dependable performance in the field.
To deliver even greater value, BR Equipment backs every Tar River product with strong warranty coverage and exclusive dealer discounts—giving you top-tier quality, competitive pricing, and the confidence of real support when you need it.
Specifications
| MODEL | ERC-4 | ERC-5 | ERC-6 | |
|---|---|---|---|---|
| FRAME | Square Back | Square Back | Square Back | |
| HOOK UP | 3 point | 3 point | 3 point | |
| TRACTOR RPM | 540 RPM | 540 RPM | 540 RPM | |
| WEIGHT | 411 lbs. | 499 lbs. | 734 lbs. | |
| DECK THICKNESS | 12 Ga. | 11 Ga. | 9 Ga. | |
| GB RATING | 45 HP | 45 HP | 45 HP | |
| PTO SHAFT | Shear Pin | Shear Pin | Shear Pin | |
| TIRE | Segmented Tire | Segmented Tire | Segmented Tire | |
| STUMP JUMPER | Yes | Yes | Yes | |
| CAT HITCH | Cat. 1 | Cat. 1 | Cat. 1 | |
| SHIELDING | Chain Frt. & Back Std | Chain Frt. & Back Std | Chain Frt. & Back Std | |
| TRACTOR HP | 20-55 | 25-55 | 35-55 | |
| CUTTING HEIGHT | 1 1/2" - 10" | 1 1/2" - 10" | 1 1/2" - 10" | |
| CUTTING CAPACITY | 1 1/2" | 1 1/2" | 1 1/2" |
Downloads

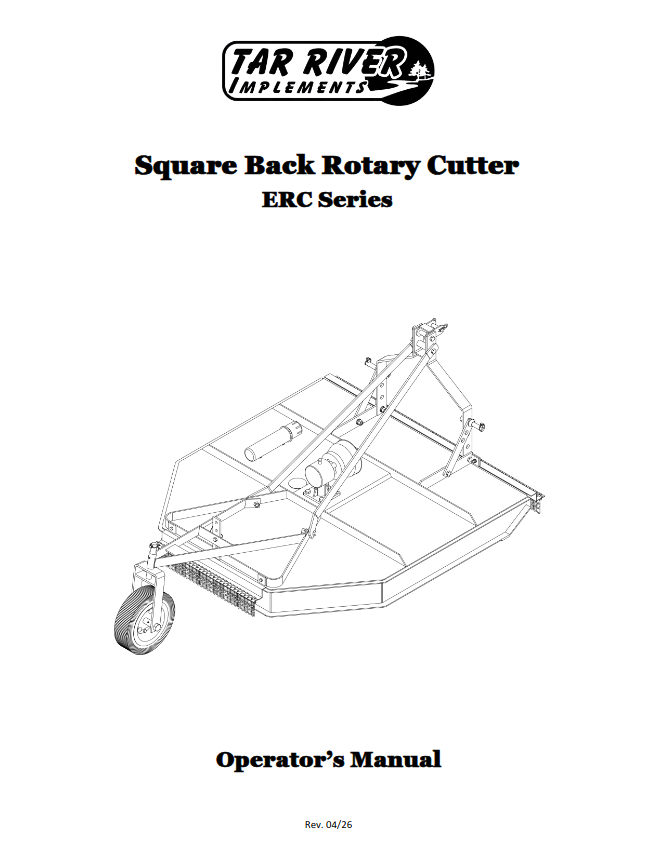

Square Back Rotary Cutter ERC Series Manual
Square Back Rotary Cutter ERC Series Manual
PTO Driveline Instructions
Instructions for installing, shortening, checking PTO driveline and more, for a PTO driveline.
