Tar River Side Shift Rotary Tiller - DLT
Specifically designed and engineered for sub-compact tractors in the 15-25 Horsepower range.
The Tar River DLT Series Rotary Tiller by Belco Resources Equipment is built with 4 blades per flange and a sturdy #80 chain drive system to give you years of reliable service. The Slip-Clutch PTO protection comes standard.
Available in 42” and 50” working widths, the Tar River DLT Series Rotary Tiller is perfect for all your small tractor tilling needs.
Key Features
Models Available
BR Equipment Benefits
BR Equipment proudly offers Tar River Implements, known for their durability, innovation, and dependable performance in the field.
To deliver even greater value, BR Equipment backs every Tar River product with strong warranty coverage and exclusive dealer discounts—giving you top-tier quality, competitive pricing, and the confidence of real support when you need it.
Specifications
| Model | Working Width | Blades per flange | Drive | HP | PTO Driveline | Wt. lbs. | Shipping Wt lbs. |
|---|---|---|---|---|---|---|---|
| DLT-S42 | 42" | 4 | #80 Chain | 15 - 25 | Series 4 S/C | 304 | 375 |
| DLT-S50 | 50" | 4 | #80 Chain | 15 - 25 | Series 4 S/C | 348 | 429 |
Downloads

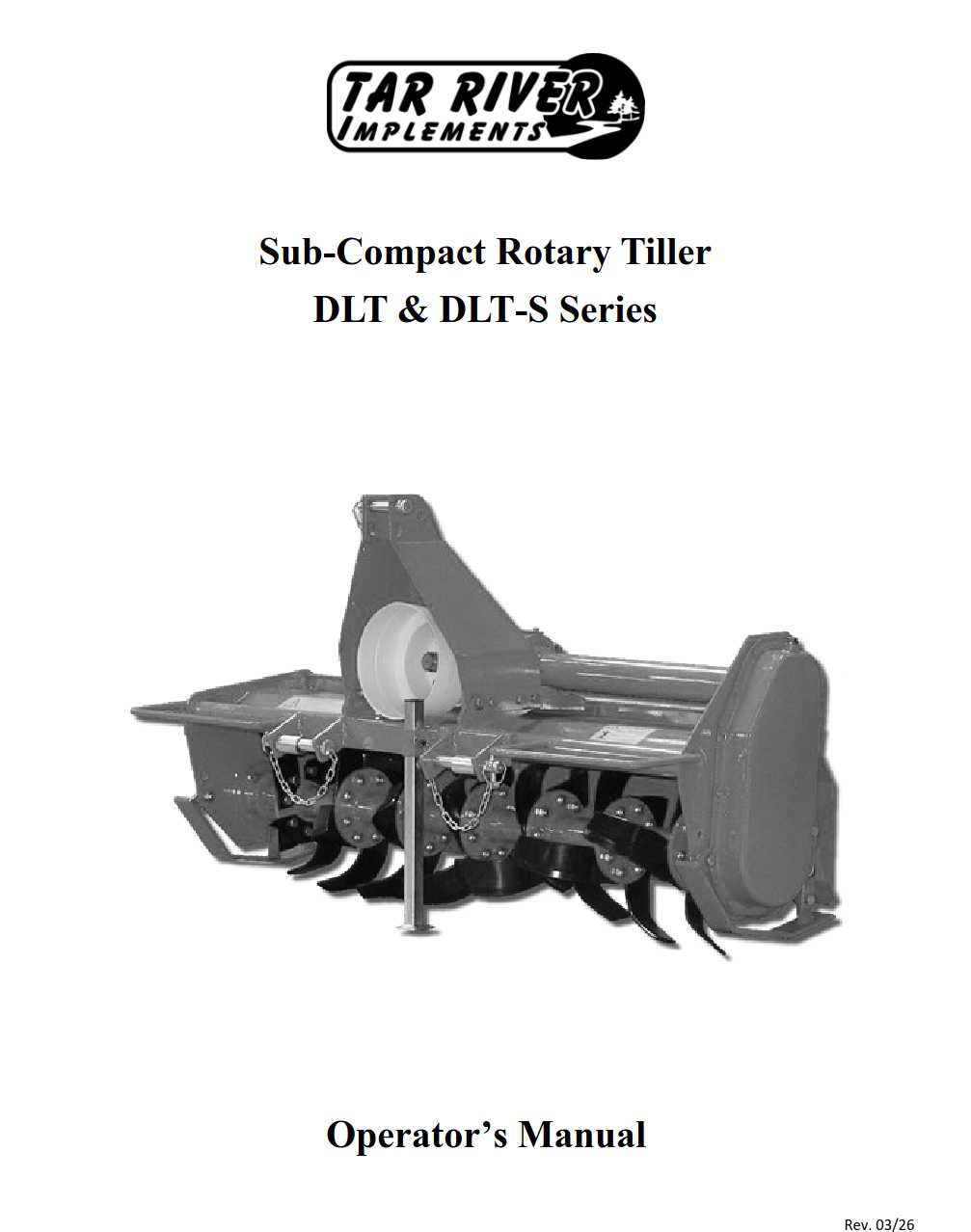

DLT Rotary Tiller Manual_0.pdf

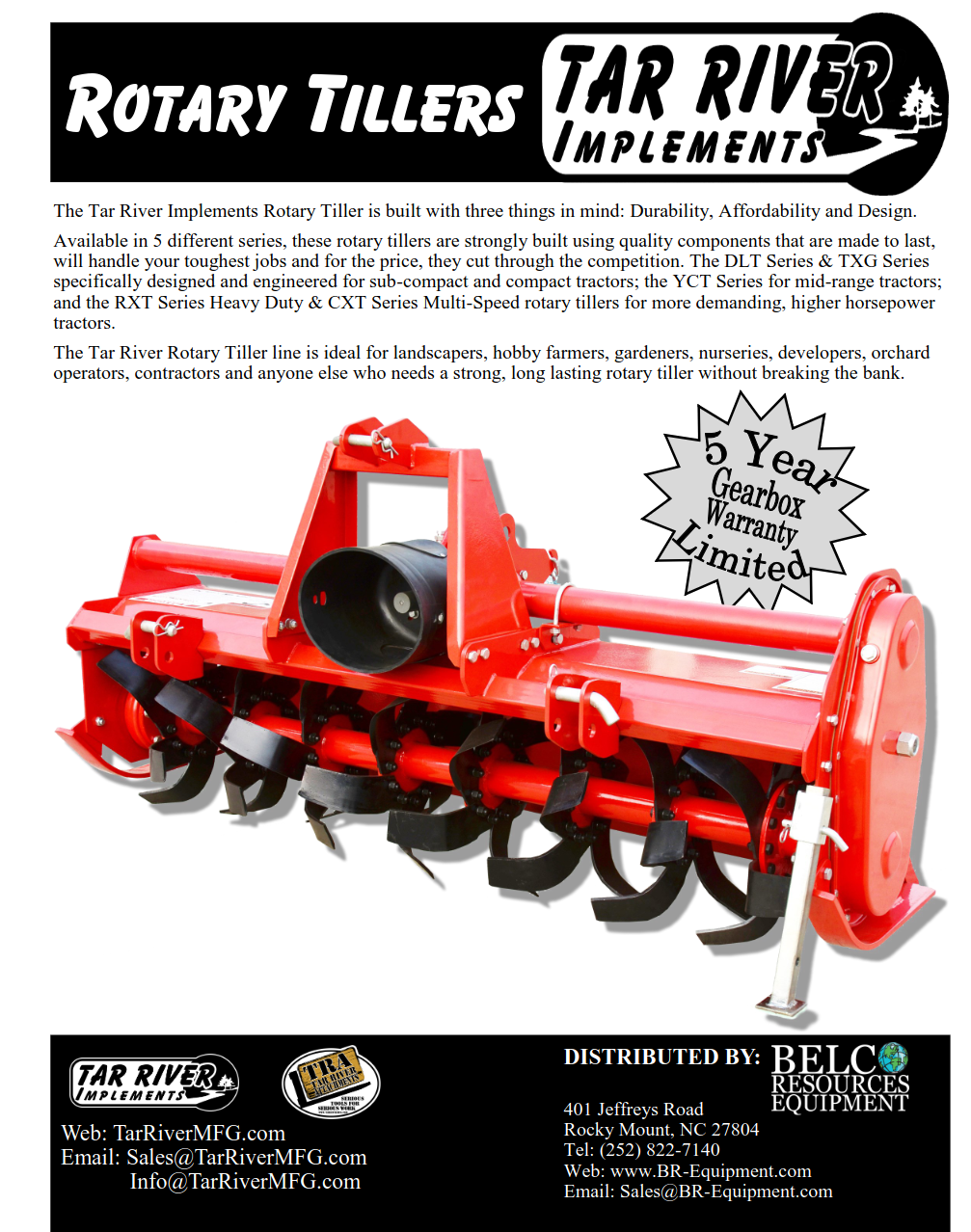

NEW Rotary Tiller Literature.pdf
PTO Driveline Instructions
Instructions for installing, shortening, checking PTO driveline and more, for a PTO driveline.
