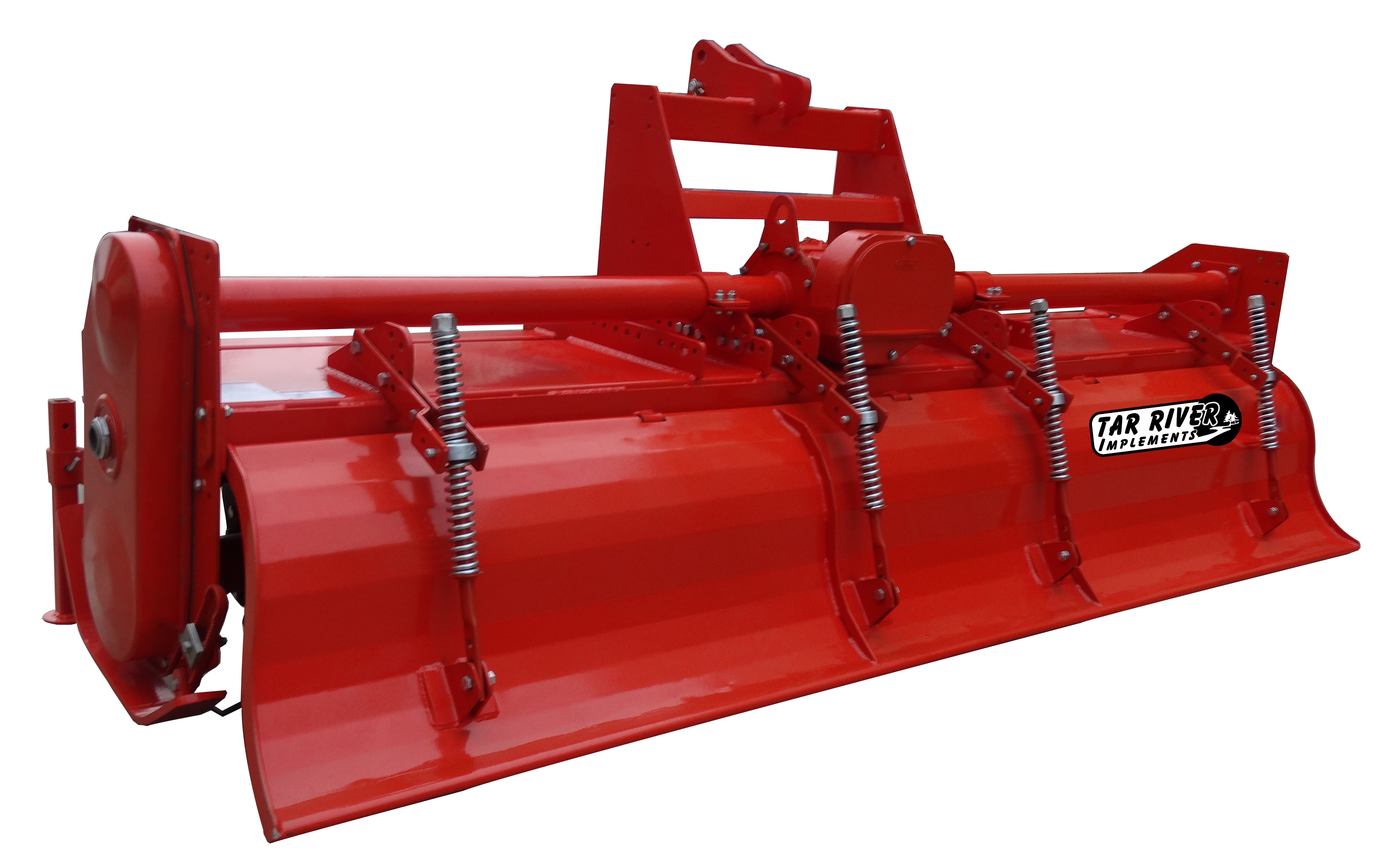

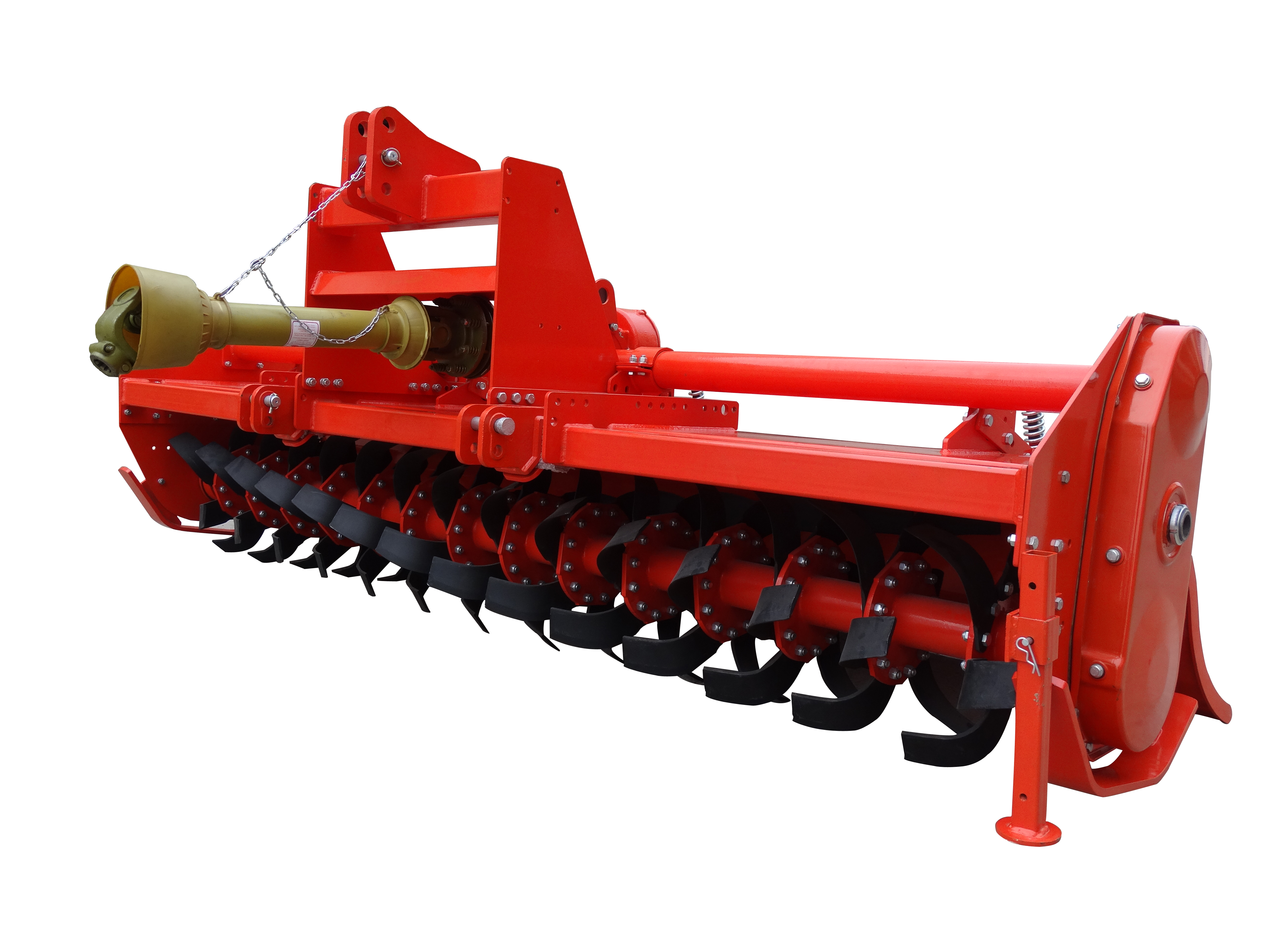

Tar River Heavy Duty Multi-Speed Gearbox Rotary Tiller - CXT
Built heavy for agricultural applications, the Tar River CXT Series Rotary Tiller is rated for tractors up to 130 HP and available in working widths of 86", 95", 104", 112" and 121".
The CXT tillers are designed with multispeed gearboxes to handle your ever changing conditions. The multispeed gearbox is designed for easy gear access to allow the rotor speed to be changed quickly as you move to different field conditions. A large thick walled rotor is sustained by water proof rotor supports for wet conditions. Decks are double layered to keep stone indentations to a minimum.
- Powder Coat Paint
- Spiral Gears
- Large Diameter Rotor
- Solid A Frame
- Waterproof Rotor Supports
Key Features
Models Available
BR Equipment Benefits
BR Equipment proudly offers Tar River Implements, known for their durability, innovation, and dependable performance in the field.
To deliver even greater value, BR Equipment backs every Tar River product with strong warranty coverage and exclusive dealer discounts—giving you top-tier quality, competitive pricing, and the confidence of real support when you need it.
Specifications
| Model | Working Width | Blades per Flange | Drive | HP | PTO Driveline | Wt. lbs. | Shipping Wt lbs. |
|---|---|---|---|---|---|---|---|
| CXT-086 | 86" | 6 | Gear | 60-130 | Series 8 S/C | 1,636 | 1,736 |
| CXT-095 | 95" | 6 | Gear | 70-130 | Series 8 S/C | 1,762 | 1,862 |
| CXT-104 | 104" | 6 | Gear | 75-130 | Series 8 S/C | 1,876 | 1,976 |
| CXT-112 | 112" | 6 | Gear | 80-130 | Series 8 S/C | 2,081 | 2,181 |
| CXT-121 | 121" | 6 | Gear | 85-130 | Series 8 S/C | 2,115 | 2,215 |
Downloads

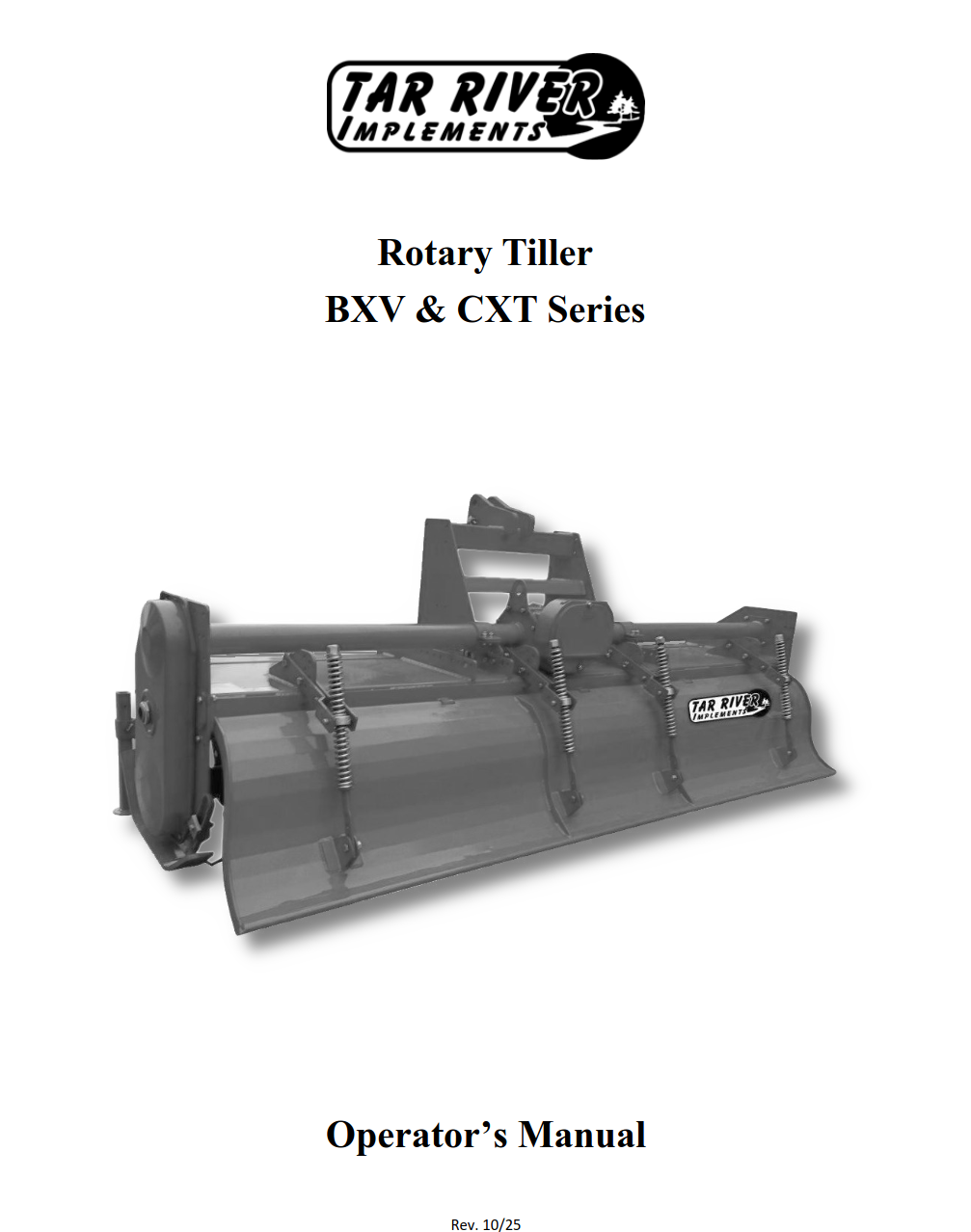

BXV-CXT Rotary Tiller Manual.pdf
