Tar River Rear Blades
Tar River Implements offers a full line of rear blades to fit your entire needs.
From the Lighter Standard Duty 60" blade for simple grading jobs all the way up to the 6-way Heavy Duty with Hydraulic Tilt, Angle and Offset in an 9' version for your toughest jobs.
- Available in 3 models, Standard, Medium and Heavy Duty.

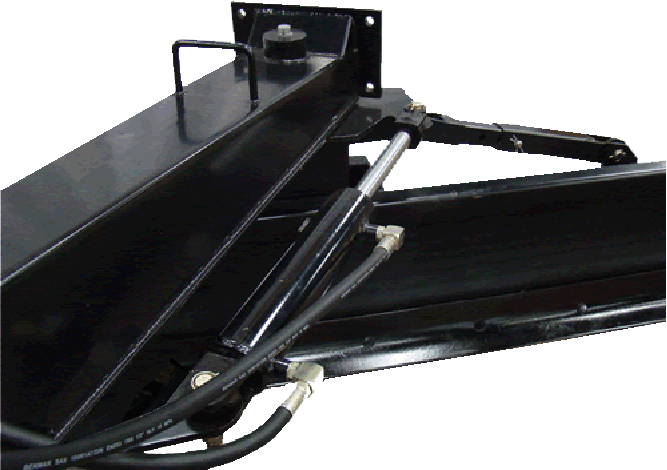

- Hydraulic Angling Cylinder Comes Standard on BRB-9 Series
Key Features

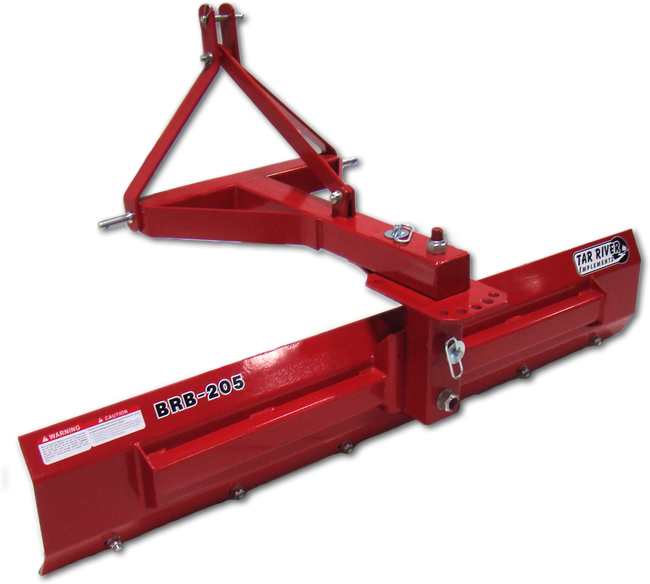

BRB-2 Series Standard Duty Economy

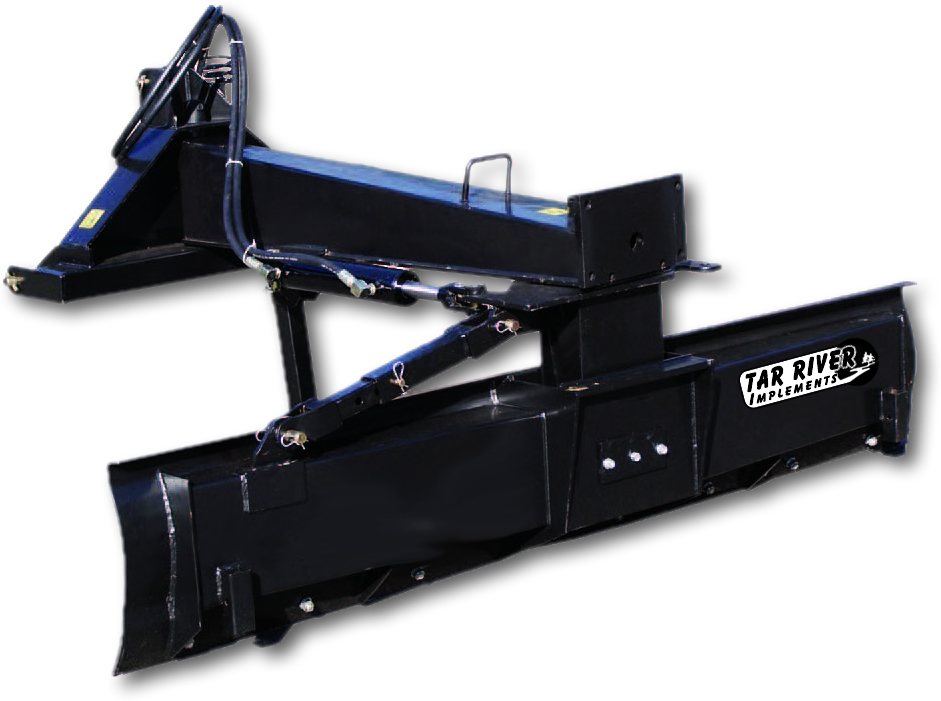

BRB-9 Series Extra Heavy Duty
Models Available
BRB-205
BRB-206
BRB-907
BRB-908
BRB-909
BRB-506
BRB-507
BRB-508
BRB-009HC
Available Addons / Options
BR Equipment Benefits
BR Equipment proudly offers Tar River Implements, known for their durability, innovation, and dependable performance in the field.
To deliver even greater value, BR Equipment backs every Tar River product with strong warranty coverage and exclusive dealer discounts—giving you top-tier quality, competitive pricing, and the confidence of real support when you need it.
Specifications
| Model | Working Width | M. Board Height | M. Board Thickness | M. Board Offset | M. Board Angle & Tilt | Max HP | Weight Lbs |
|---|---|---|---|---|---|---|---|
| Standard Duty Economy | |||||||
| BRB-205 | 60" | 14" | 1/4" | N/A | Yes | 40 | 190 |
| BRB-206 | 72" | 14" | 1/4" | N/A | Yes | 40 | 216 |
| Medium Duty 6-Way | |||||||
| BRB-506 | 72" | 13" | 1/4" | Yes | Yes | 60 | 333 |
| BRB-507 | 84" | 13" | 1/4" | Yes | Yes | 60 | 355 |
| BRB-508 | 96" | 13" | 1/4" | Yes | Yes | 60 | 377 |
| 6-Way Heavy Duty | |||||||
| BRB-907 | 84" | 19" | 1/4" | Yes | Yes | 90 | 908 |
| BRB-908 | 96" | 19" | 1/4" | Yes | Yes | 90 | 939 |
| BRB-909 | 108" | 19" | 1/4" | Yes | Yes | 90 | 979 |
Downloads

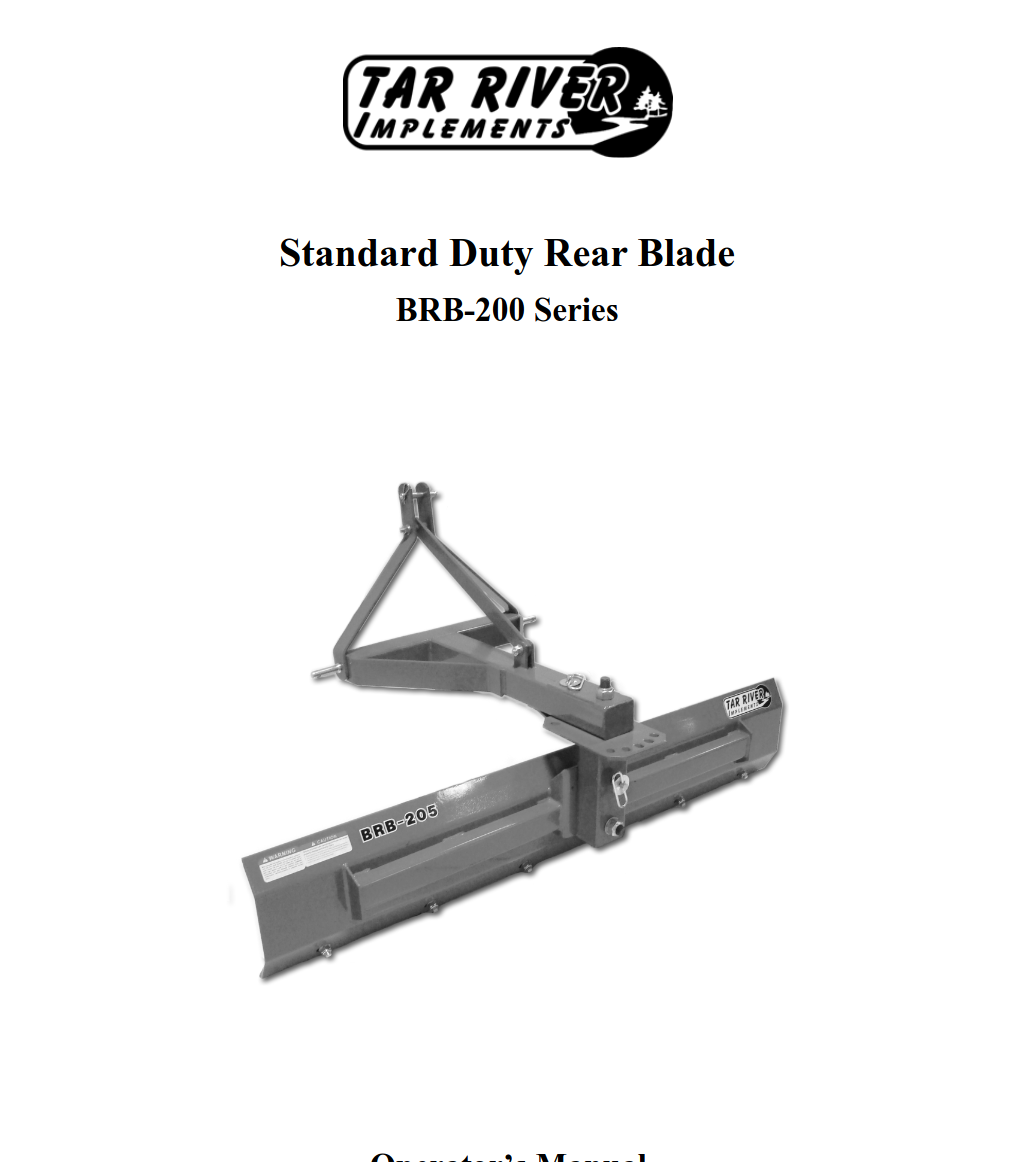

BRB-2 Series Standard Duty Rear Blade_0.pdf

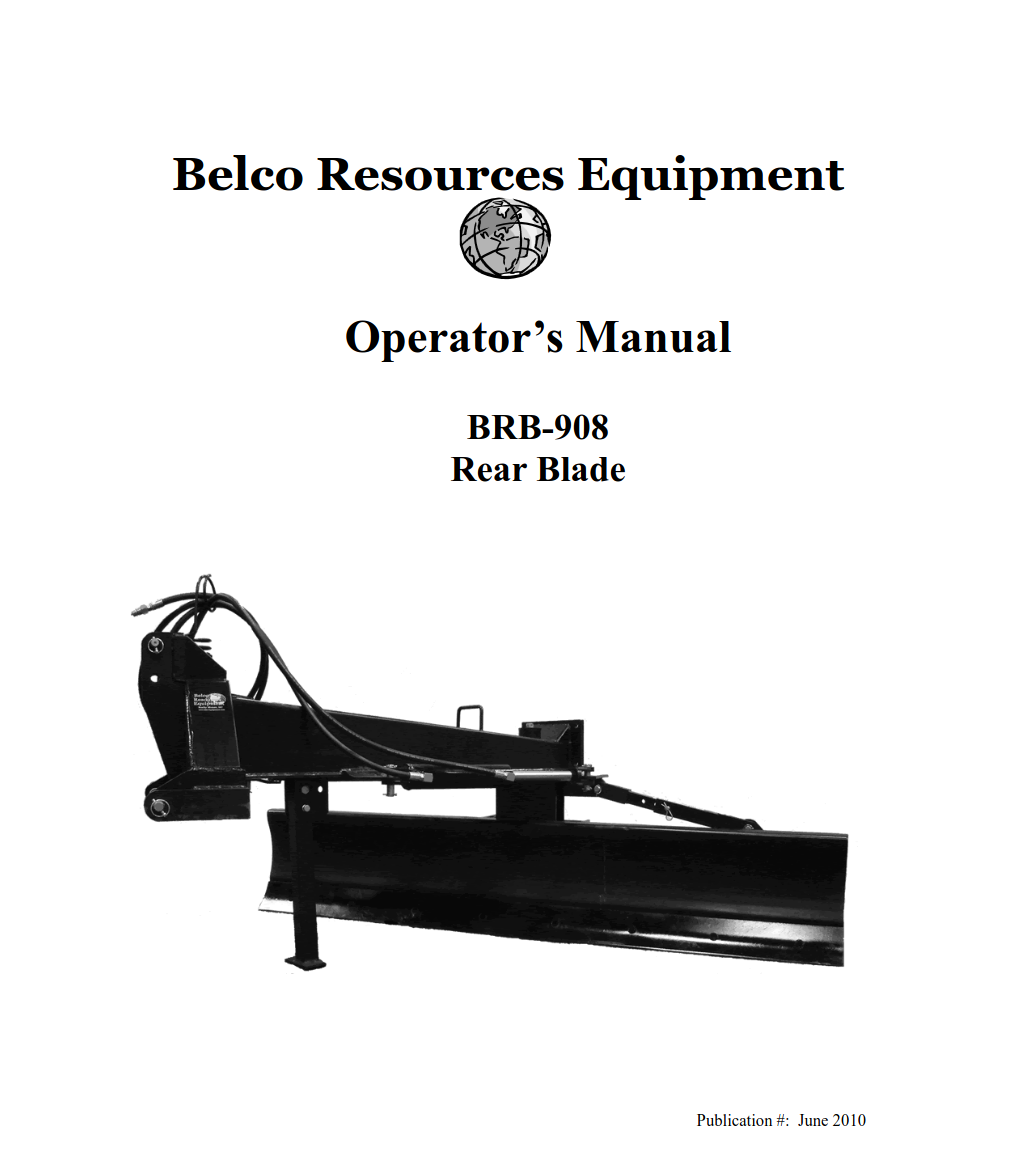

BRB-908 Rear Blade Manual.pdf

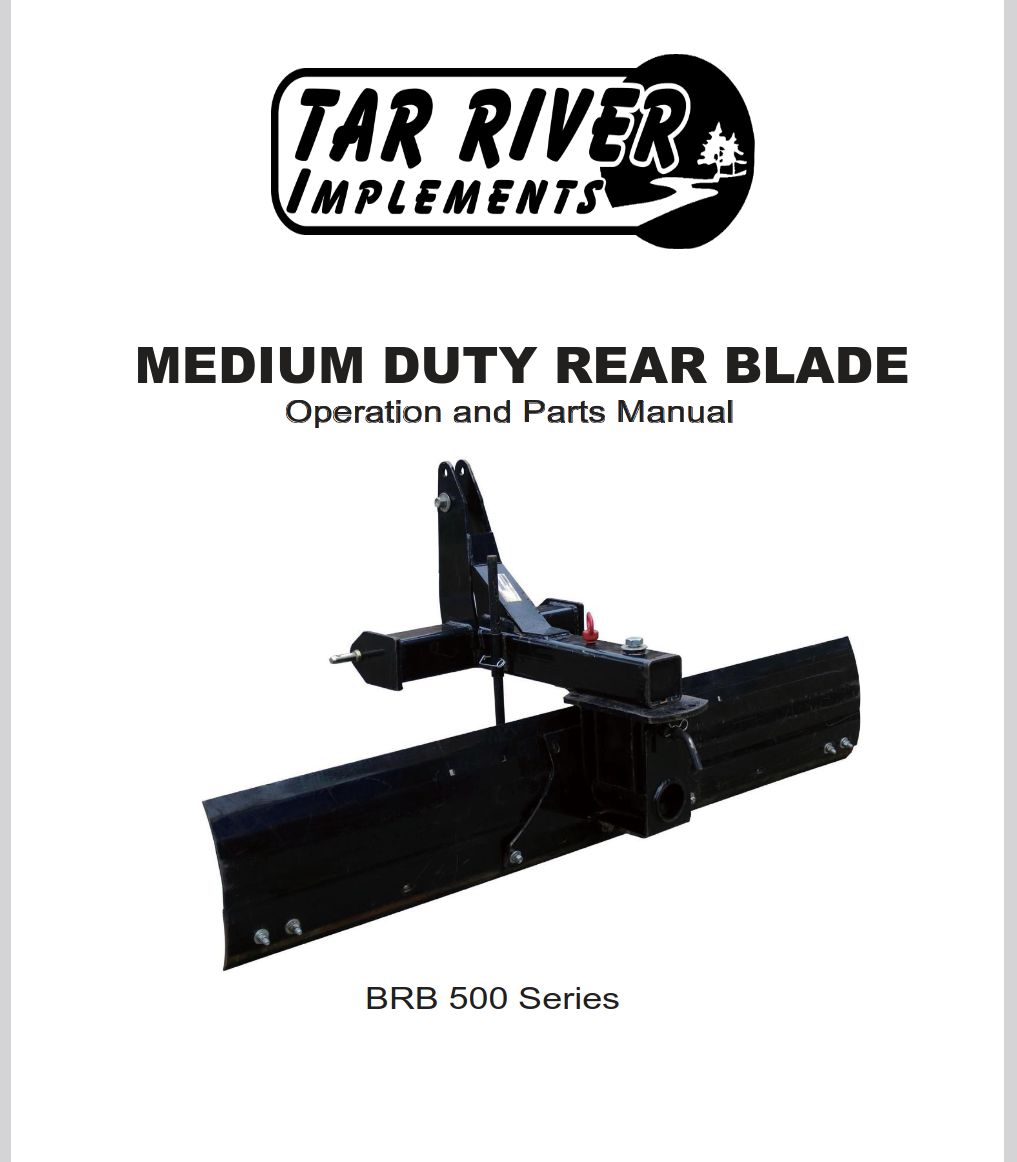

MD Rear Blade Manual (BRB-500 Series).pdf
