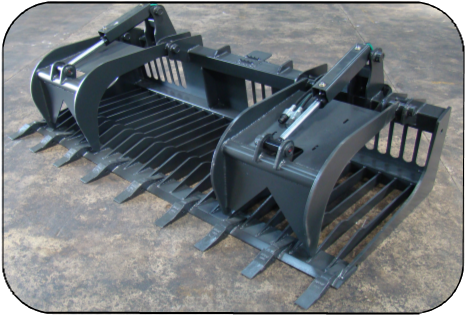

TRA Rock Grapple
Heavy Duty Rock Grapple in working widths of 60", 72", 84" and 96"
3/4” x 6” cutting edge
3/8” tines across bottom and 1/2” sides spaced 3” apart
1/2” top tines on grapple
Twin Cylinders with 2” bore & 10” stroke
High Quality 1/2” A36 Steel
1 1/4” pins with counter sunk grease fittings
Weld-On Teeth Optional
Heavy, Durable Construction
Units Come Standard With Flat Faced Couplers & Hoses

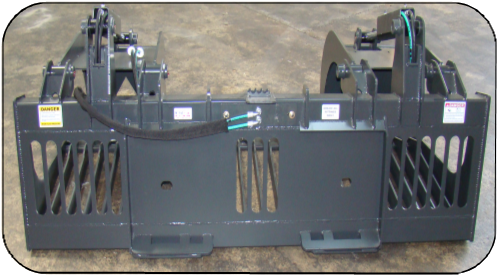

Standard Universal Skid Steer Mount
Optional JD or Euro/Global Mounts
Models Available
Available Addons / Options
BR Equipment Benefits
As a distributor of Tar River Implements, BR Equipment provides customers with trusted equipment backed by knowledgeable support and dependable service. Our team helps customers choose the right attachments for their operation while offering ongoing assistance, parts support, and a commitment to long-term reliability.
Specifications
| Model | Description | Mount | Weight |
|---|---|---|---|
| RG60 | Rock Grapple - 60" | Universal Skid Steer | 778 lbs. |
| EGRG60 | Rock Grapple - 60" | Euro/Global | 778 lbs. |
| JDRG60 | Rock Grapple - 60" | John Deere | 778 lbs. |
| RG60T | Rock Grapple - 60" w/weld on teeth | Universal Skid Steer | 818 lbs. |
| RG72 | Rock Grapple - 72" | Universal Skid Steer | 920 lbs. |
| EGRG72 | Rock Grapple - 72" | Euro/Global | 920 lbs. |
| JDRG72 | Rock Grapple - 72" | John Deere | 920 lbs. |
| RG72T | Rock Grapple - 72" w/weld on teeth | Universal Skid Steer | 960 lbs. |
| RG80 | Rock Grapple - 80" | Universal Skid Steer | 940 lbs. |
| RG80T | Rock Grapple - 80" w/weld on teeth | Universal Skid Steer | 1,087 lbs. |

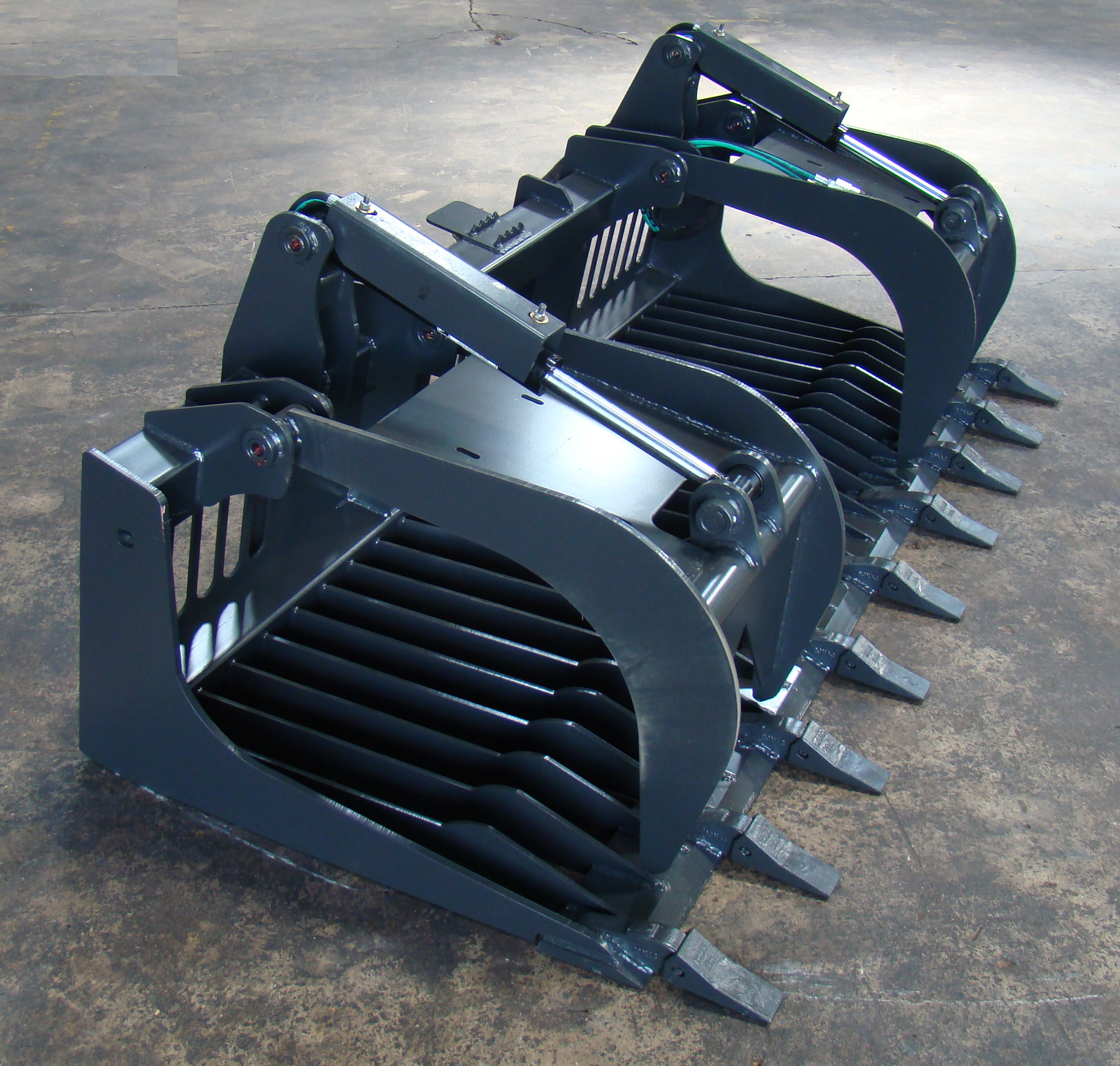

| RG84T | Rock Grapple - 84" w/weld on teeth | Universal Skid Steer | 1,127 lbs. |
| RG84 | Rock Grapple - 84" | Universal Skid Steer | 1,087 lbs. |
| EGRG84 | Rock Grapple - 84" | Euro/Global | 1,087 lbs. |
| JDRG84 | Rock Grapple - 84" | John Deere | 1,087 lbs. |
