Greenscape 750-2 Food Plotter

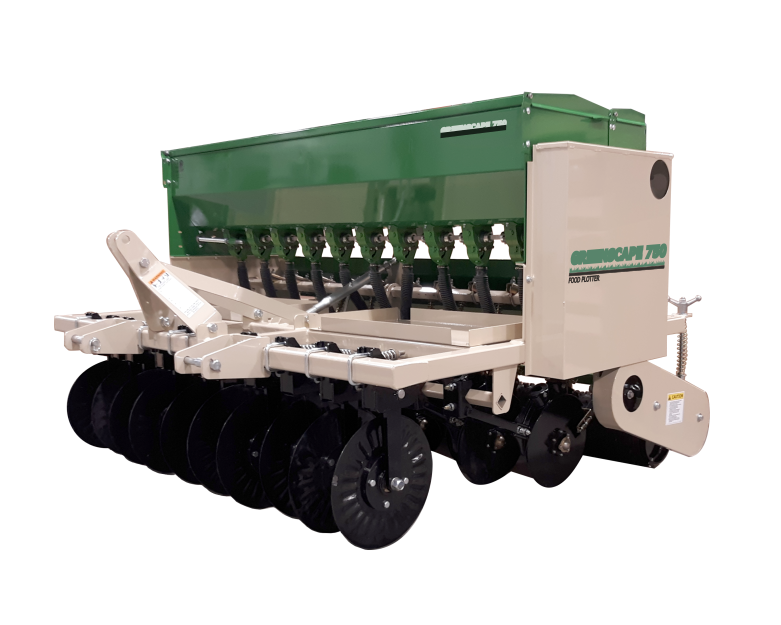

The Greenscape 750 Food Plotter No-Till Drill is the latest in the Greenscape family of the most reliable seeders produced in the US over the past 20 years.
Heavy built, but constructed to be able to be handled by tractors as low as 50 HP, The FOODPLOTTER is designed for planting deer food plots around woodlands or high precision pasture seeding in the fall. The 10 coulters at 7 1/2” High precision large seed seedcups accurately drop seeds into the openings. A separate Legume Seedbox with high precision seed cups accurately drop seed along a “splash pan” that rains the small seed over the soil. A packer roller system with Nylon rings or optional cast iron rollers help press the seed into the ground and close up the cuts made by the disc openers.
Models Available
BR Equipment Benefits
BR Equipment proudly offers Greenscape Conservation feeders backed by dependable customer support and product knowledge you can trust. We work closely with customers to help them find the right feeding solutions for their operation while providing ongoing service and support after the sale.
Specifications
| Hitch | HP (min) | Working Width | Overall Width | Overall Length | Overall Height | Weight lbs. | Dbl. Disc Openers | Disc Spacing | Lg. Seed Box Cap. | Legume Seed Box Cap. | Rear Cultipacker Roller |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cat 1&2 | 40 HP | 75" | 94" | 75" | 54" | 1,580 | 10 | 7.5" | 10.27 cu. ft. | 2.64 cu. ft. | Fiber reinforced nylon |
Downloads

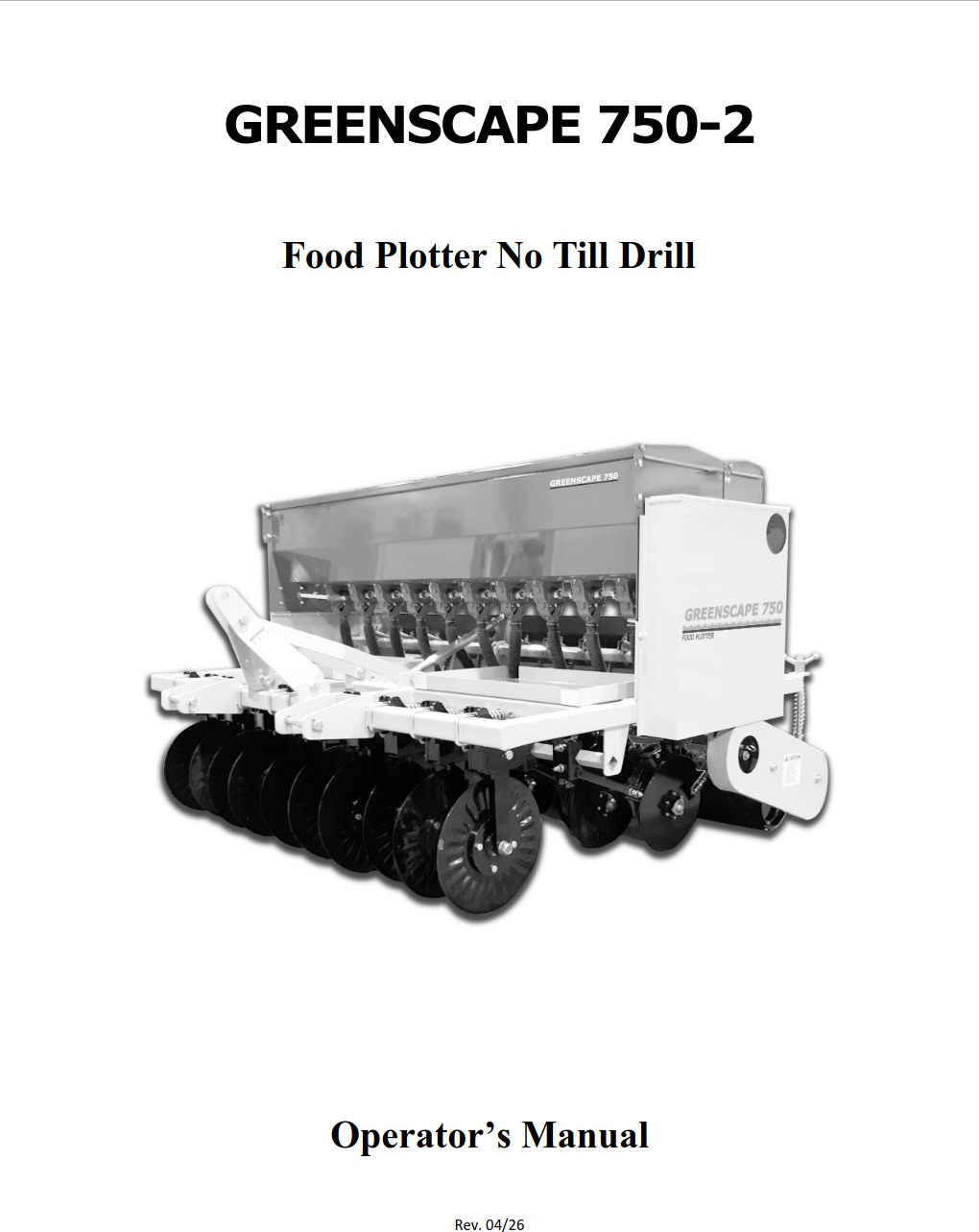

Greenscape 750-2 Food Plotter No Till Drill.pdf
