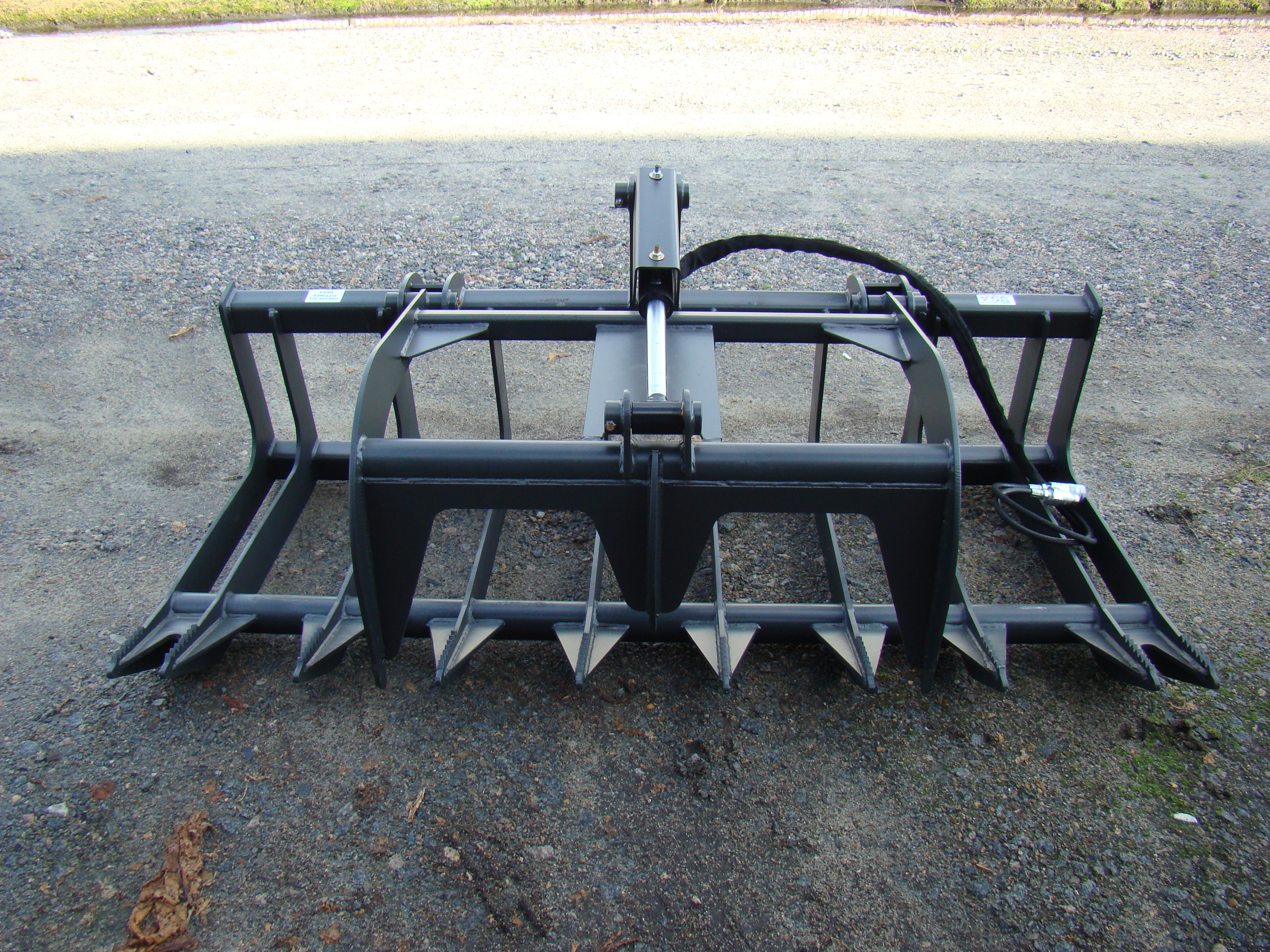

TRA Heavy Duty Root Grapples

https://www.br-equipment.com/sites/default/files/image03_0.jpg

Search for Equipment, Parts and Acccesories

Heavy Duty Root Grapple available in Single and Double Tine Configurations

Gallery Video

Features

HDRG100 Series has 1 Single, Extra-Wide Grapple High Volume Flat Bottom 1 1/4” Pins with Counter Sunk Grease Fittings Grapple Opens 34” Units Come Standard With Flat Faced Couplers & Hoses Standard Universal Skid Steer Mount Optional JD or Euro/Global Mounts Available Sizes: 60” & 72”

HDRG200 Series has 2 Grapples with Independently Working Cylinders High Quality 3/8” A36 Steel Plates with 3”x3” tubing & 1/4” Wall High Volume Flat Bottom 1 1/4” Pins with Counter Sunk Grease Fittings Grapple Opens 34” Units Come Standard With Flat Faced Couplers & Hoses Standard Universal Skid Steer Mount Optional JD or Euro/Global Mounts Available Sizes: 60”, 72” & 84”

Specifications


Model	Description	Mount	Weight
HDRG160	Heavy Duty Root Grapple - Single Grapple - 60"	Universal Skid Steer	430 lbs.
EGHDRG160	Heavy Duty Root Grapple - Single Grapple - 60"	Euro/Global	430 lbs.
JDHDRG160	Heavy Duty Root Grapple - Single Grapple - 60"	John Deere	430 lbs.
HDRG172	Heavy Duty Root Grapple - Single Grapple - 72"	Universal Skid Steer	475 lbs.
EGHDRG172	Heavy Duty Root Grapple - Single Grapple - 72"	Euro/Global	475 lbs.
JDHDRG172	Heavy Duty Root Grapple - Single Grapple - 72"	John Deere	475 lbs.

HDRG260	Heavy Duty Root Grapple - Double Grapple - 60"	Universal Skid Steer	595 lbs.
EGHDRG260	Heavy Duty Root Grapple - Double Grapple - 60"	Euro/Global	595 lbs.
JDHDRG260	Heavy Duty Root Grapple - Double Grapple - 60"	John Deere	595 lbs.
HDRG272	Heavy Duty Root Grapple - Double Grapple - 72"	Universal Skid Steer	650 lbs.
EGHDRG272	Heavy Duty Root Grapple - Double Grapple - 72"	Euro/Global	650 lbs.
JDHDRG272	Heavy Duty Root Grapple - Double Grapple - 72"	John Deere	650 lbs.
HDRG284	Heavy Duty Root Grapple - Double Grapple - 84"	Universal Skid Steer	705 lbs.
EGHDRG284	Heavy Duty Root Grapple - Double Grapple - 84"	Euro/Global	705 lbs.
JDHDRG284	Heavy Duty Root Grapple - Double Grapple - 84"	John Deere	705 lbs.
